Base Plates
Made in Rockford, IL.

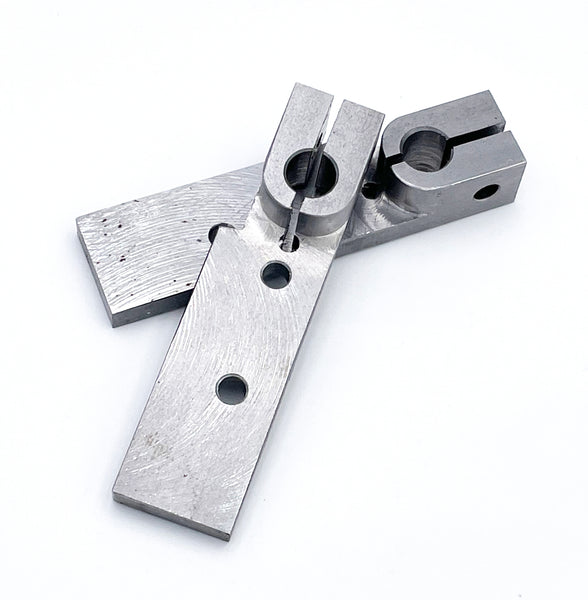

Base Plate - Standard
$ 12.00
Standard base plate. This is the one that started it all for us, our standard base plate. Precision milled from low carbon steel.

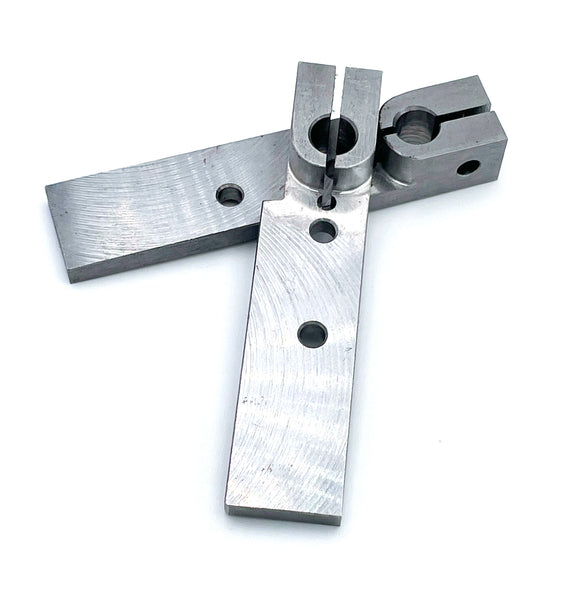

Base Plate - Long Standard
Sold Out
This base plate features a longer geometry. Precision milled from low carbon steel

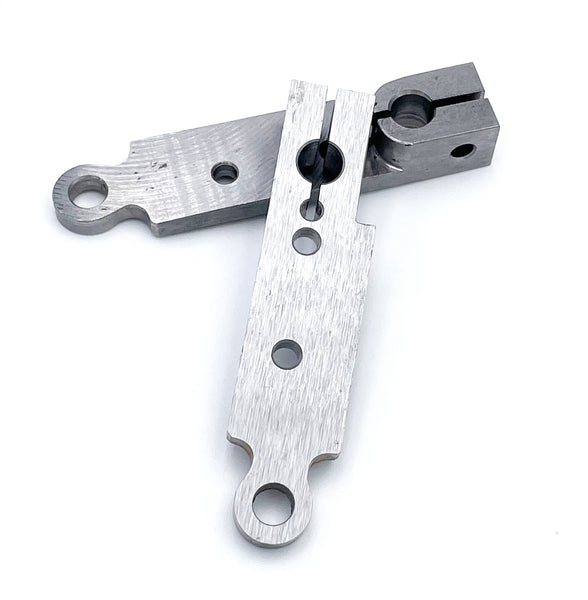

Base Plate - Standard with Ring
$ 14.50
This base plate features a standard length geometry and a hole for vertical mounting of the rear bind post. Precision milled from low carbon steel

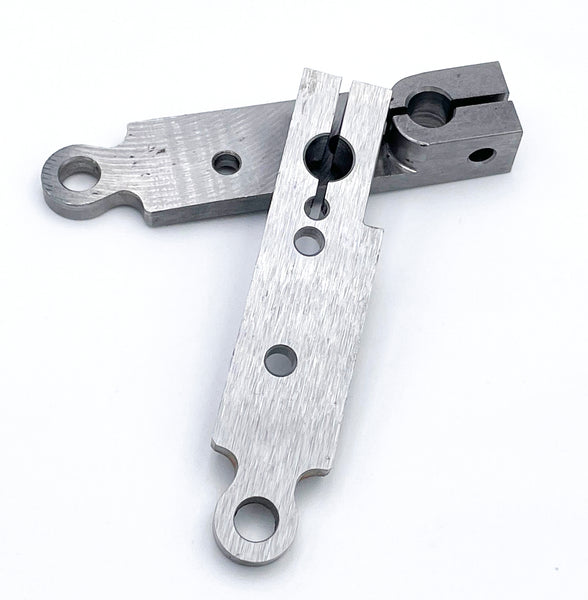

Base Plate - Long Standard with Ring
$ 14.50
This base plate features a longer geometry and a hole for vertical mounting of the rear bind post. Precision milled from low carbon steel

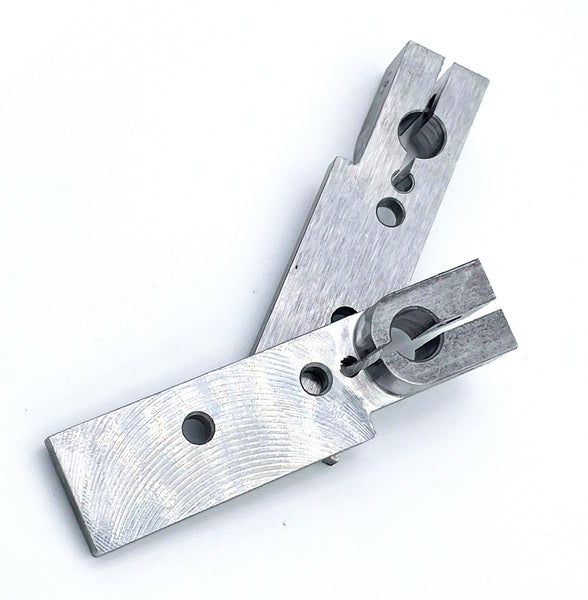

Base Plate - Left-Hand - Standard
$ 12.00
This is a left-handed version of our standard base plate. Precision milled from 1018 steel.

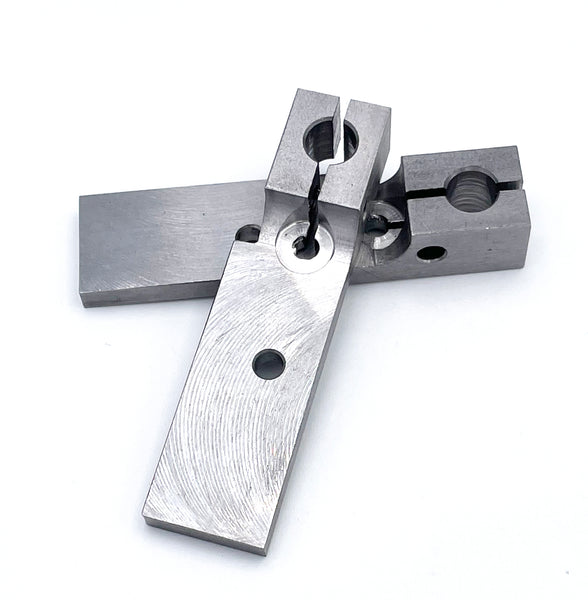

Base Plate - Rear Pinch Vise
$ 13.00
This base plate features a rear pinch vise. Precision milled from low carbon steel.

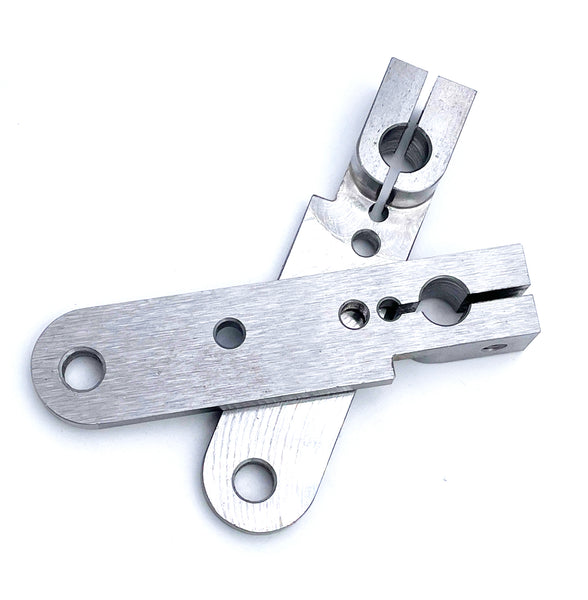

Base Plate - Long Base with Radius Binding Post Hole
$ 14.50
This base plate features a longer geometry and a radius hole for vertical mounting of the rear bind post. Precision milled from low carbon steel

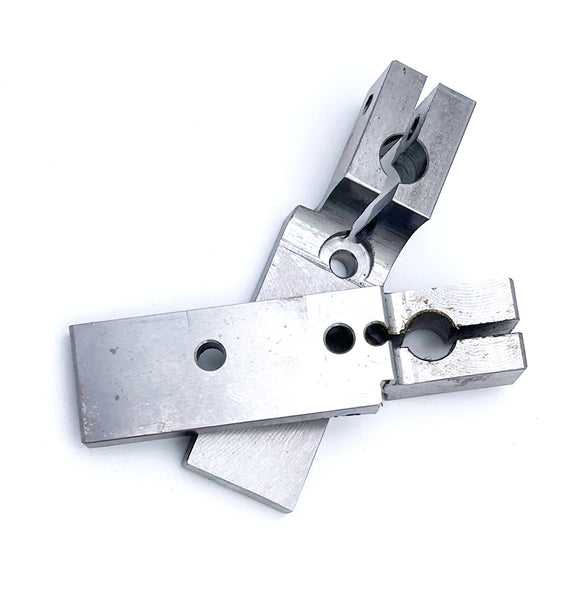

Base Plate - Drop Down
$ 14.50
This base plate has a drop tube vise so you can use full-length needle bars when using 1" coils. Precision milled for made from low carbon steel.
Base Plate - Left-Hand - Drop Down
$ 14.50
Left-handed drop down base plate. This base plate is designed to make a left-handed machine and has a drop tube vise so you can use full-length needle bars when using...

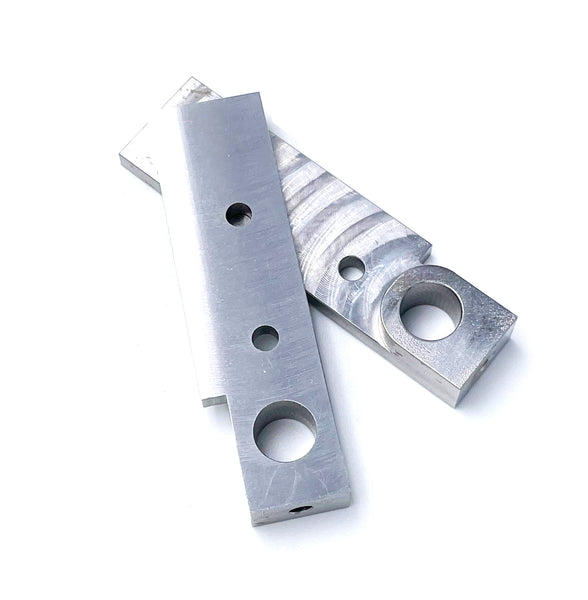

Base Plate - Standard Tube Crusher
$ 11.00
This base plate has a tube crusher style tube vise on it. You can braze in your own sleeve or we can do it for an additional cost.

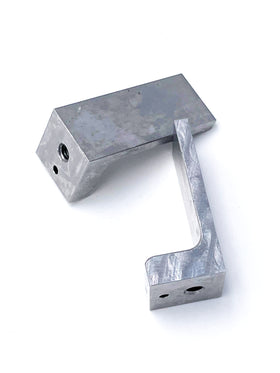

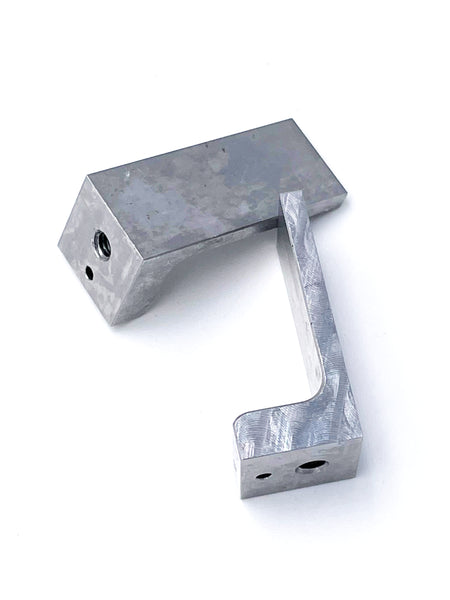

Rear Uprights
Sold Out
Rear uprights made from 1018 cold roll steel. Upright is .125” thick x .600” wide and tapped for 8-32 screw. Option for 1” coils and 1.25” coils
Base Plate - Guillotine Style Vice
Sold Out
This base features a guillotine style tube vice that will accommodate and tighten on all tubes. It comes with the insert which is threaded for and 8-32 screw. Made from...

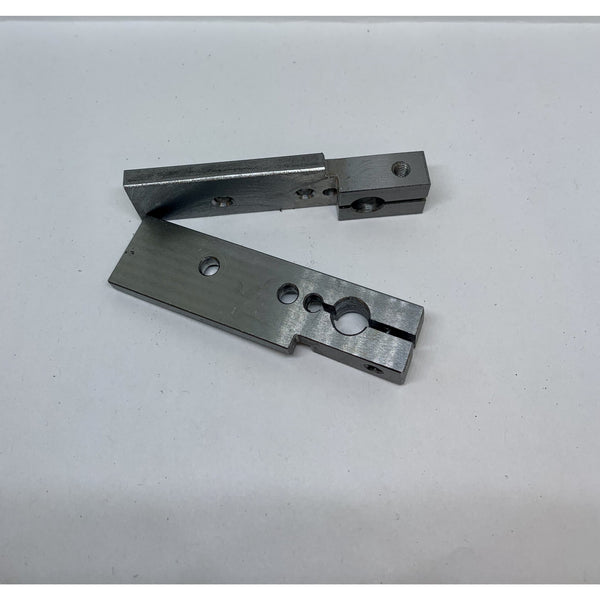

Base Plate - Light Weight Base
$ 12.00
This has a 3/8” thick tube vise to take some of the weight away. Made from 1018 steel.
